土耳其比重清選機 Gravity separator G.MAC-010

關鍵詞：

咨詢電話：

熊經理 18168863192

周經理 13665101927

產品介紹

比重清選機 Gravity separator G.MAC-010

Akyurek Technology G.MAC-010 Gravity Separator - machines for the perfect separation of products with a different weight, grading by specific weight of product with very slight differenced in size and/for weight, which cannot be separated by screening (width) or by indented cylinders (length).

Akyurek Technology G.MAC-010重力分離器-用于完美分離不同重量的產品的機器，按產品的重量進行分級，產品的尺寸和/或重量差別很小，不能通過篩分（寬度）或凹痕圓柱體（長度）來分離。

APPLICATIONS 應用

-Seed processing of grain, cereals,corn, fine seed, legumes, cotton seeds, oil seeds, paddy

糧食、谷類、玉米、良種、豆類、棉籽、油籽、稻谷的種子加工

-Food processing separation of impurities in vegetables, lentils, peas, chick peas, beans, coffee peanuts, hazelnuts, almonds, etc.

食品加工分離蔬菜、扁豆、豌豆、鷹嘴豆、豆類、咖啡花生、榛子、杏仁等雜質。

-Separation of metals, plastic, rubber, wood, minerals.

分離金屬，塑料，橡膠，木材，礦物。

-Sorting of tree seeds, pulses, grasses, herbs.

樹木種子，豆類，草，草本植物的分類。

WORK PRINCIPLE 工作原理

The separator works on a fluidised bed principle; air is forced through the deck causing the light fraction to float above the heavy fraction. The deck is reciprocated causing the heavy fraction to move uphill, while the light fraction floats downhill. Variations in deck speed, air volume, deck material, deck angle (lengthwise and sidewise), and take-off points allow effective separation to be achieved on almost ant dry product. The Re-Sort Conveyor Belt which is located below the Gravity Separator’s Platform conveys the middling seeds to the feeder elevator so the seeds that are not certain of their quality is re-separated thus allows the operator to control the out put quality in finer results.

分離器的工作原理是流化床；空氣被強制通過甲板，使輕組分漂浮在重組分之上。甲板是相互作用的，使重的部分上山，而輕的部分下山。甲板速度、空氣量、甲板材料、甲板角度（縱向和橫向）和起飛點的變化允許在幾乎干燥的產品上實現有效分離。位于重力分離器平臺下方的再分選輸送帶將中粒種子輸送至給料器提升機，從而將不確定其質量的種子重新分離，從而使操作人員能夠更好地控制出料質量。

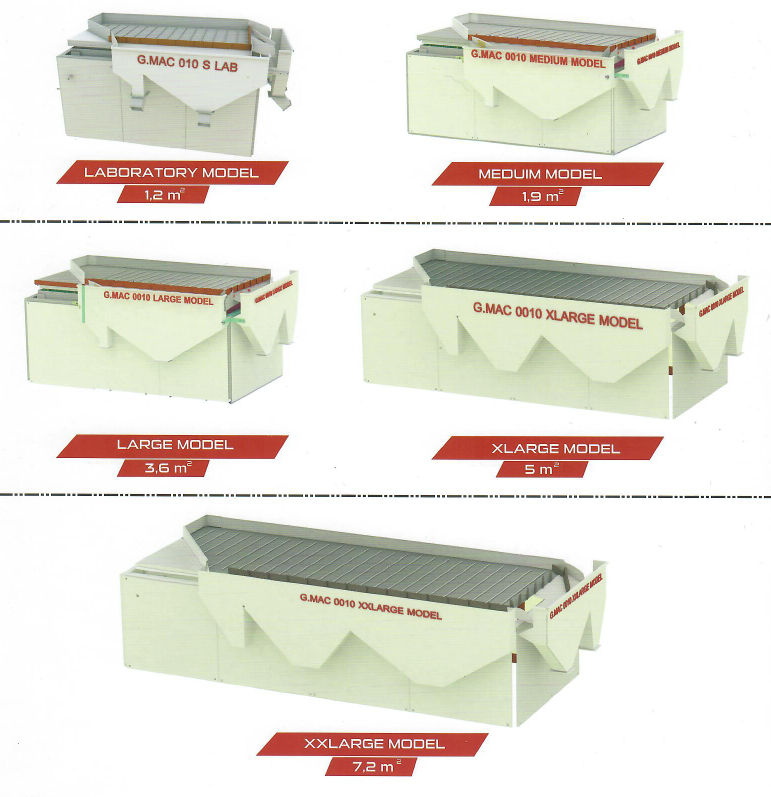

Technical Data 技術數據	G.MAC-010 LAB	G.MAC-010 MEDIUM	G.MAC-010 LARGE	G.MAC-010 XLAR.	G.MAC-010 XXLAR.
CAPACITY 生產能力
CORN, WHEAT, SOYABEANS 玉米、小麥、大豆	1 t/h	2 to 4 t/h	4 to 6 t/h	6 to 8 t/h	8 to 12.5 t/h
PEAS 豌豆	750 kg	1.5 to 2 t/h	3.5 to 5 t/h	5 to 7.5 t/h	7.5 to 10 t/h
CLOVER, PAPE SEED 三葉草	350 kg	0.8 to 1.25 t/h	1.5 to 2.5 t/h	2.5 to 3 t/h	3.5 to 4.5 t/h
COFFEE GREEN 生咖啡	1.3 kg	3 t/h	6.5 t/h	10 t/h	15 t/h
FAN DRIVE 風扇驅動	1 unit 3 KW	3 unit 4 KW	3 unit 5.5 KW	4 unit 5.5 KW	4 unit 5.5 KW
ECCENTRIC DRIVE MOTOR 偏心驅動電機	1.5 KW	1.5 KW	1.5 KW	2.2 KW	3 KW
TABLE AREA 工作臺規格	1.2 m2	1.9 m2	3.6 m2	4.6 m2	7.2 m2
AIR REQUIREMENT 空氣需求量	35	150	250	450	600
DIMENSIONS 尺寸
LENGTH 長	1740 mm	3000 mm	3000 mm	3330 mm	3330 mm
WIDTH 寬	1640 mm	4100 mm	4100 mm	4995 mm	4995 mm
HEIGTH 高	1400 mm	3900 mm	3900 mm	3390 mm	3390 mm
NET WEIGHT 凈重	1500 kg	1500 kg	2000 kg	2500 kg	3500 kg
